Quality Trailers - 16' Tilt Skid Steer Trailer

* 12,000 GVWR     * 14,000 GVWR

12,000 GVWR

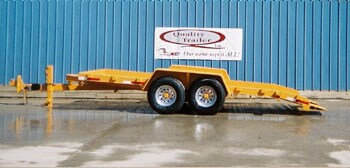

16' Tilt Skid Steer Trailer - 12,000 GVWR
16' Tilt Skid Steer Trailer - 12,000 GVWR
 Click to Enlarge
Specifications
  • G.V.W.R: 12,000 pounds
  • Deck Length: 16' (+) 24
  • Deck Height:
  • Deck Width:
  • Electrical: DOT Approved Lights, Wiring, and Connector
  • Frame: 6"x4" x 3/8" Frame
  • Dovetail:
  • Fenders: HD Diamond Plate with Back
  • Upper Deck:
  • Lower Deck:
  • Side Rail:
  • Brakes: All Wheel Electric Brakes and Breakaway Kit
  • Tongue:
  • Tailgate:
  • Tires: 750/16 LRE (2,780 lb.) (bias)
  • Wheels: Silver or White Mod
  • Floor: Full Diamond Plate
  • Jack: 12,000 # Drop Foot
  • Coupler: Adjustable 2-5/16 Ball or Pintle
  • Axles: Two 6,000 # Braking EZ Lube Axles
  • Safety Chains: Heavy Duty Safety Chains
  • Suspension: 3,500 # Slipper Springs
  • Ramps: 24"x16" Extensions
  • Toolbox:
  • Tie Downs:
  • Finish: Two Coats of Automotive Grade Acrylic Enamel, Pin Striped
Options
  • Spare Tire and Rim (Radial)(3,042 lb.) (Call 877-444-4916 for details!)
  • Radial Tire Upgrade (Call 877-444-4916 for details!)
  • Spare Tire and Rim (Bias) (Call 877-444-4916 for details!)
  • Rub Rail (Call 877-444-4916 for details!)
  • Spare Tire and Rim (Call 877-444-4916 for details!)
  • Load Range G tire upgrade (Call 877-444-4916 for details!)
  • Load Range G Spare (Call 877-444-4916 for details!)
  • Rub Rail (Call 877-444-4916 for details!)
  • Adjustable Coupler and Pintle (Call 877-444-4916 for details!)
Back to Top

14,000 GVWR

16' Tilt Skid Steer Trailer - 14,000 GVWR
16' Tilt Skid Steer Trailer - 14,000 GVWR
 Click to Enlarge
Specifications
  • G.V.W.R: 14,000 pounds
  • Deck Length: 16' (+) 24
  • Deck Height:
  • Deck Width:
  • Electrical: DOT Approved Lights, Wiring, and Connector
  • Frame: 6" x 4" x 3/8" Frame
  • Dovetail:
  • Fenders: HD Diamond Plate with Back
  • Upper Deck:
  • Lower Deck:
  • Side Rail:
  • Brakes: All Wheel Electric Brakes and Breakaway Kit
  • Tongue:
  • Tailgate:
  • Tires: 235/85 R16 (3,042 lb.)
  • Wheels: SIlver or White Mod
  • Floor: Full Diamond Plate
  • Jack: 12,000 # Drop Foot
  • Coupler: Adjustable 2 5/16 Ball or Pintle
  • Axles: Two 7,000# Braking EZ Lube Axles
  • Safety Chains: Heavy Duty Safety Chains
  • Suspension: 3,500# Slipper Springs
  • Ramps: 24"x16" Extensions
  • Toolbox:
  • Tie Downs:
  • Finish: Two Coats of Automotive Grade Acrylic Enamel, Pin Striped
Options
  • Spare Tire and Rim (Radial)(3,042 lb.) (Call 877-444-4916 for details!)
  • Radial Tire Upgrade (Call 877-444-4916 for details!)
  • Spare Tire and Rim (Bias) (Call 877-444-4916 for details!)
  • Rub Rail (Call 877-444-4916 for details!)
  • Spare Tire and Rim (Call 877-444-4916 for details!)
  • Load Range G tire upgrade (Call 877-444-4916 for details!)
  • Load Range G Spare (Call 877-444-4916 for details!)
  • Rub Rail (Call 877-444-4916 for details!)
  • Adjustable Coupler and Pintle (Call 877-444-4916 for details!)
Back to Top

All of our construction trailers are of the highest quality and come with standard features and a variety of options. We carry a full line of construction trailers from manufacturers that you know and trust including Pace American, Quality Trailers and Econoline. Contact Us today to learn more about our complete line of construction trailers and to find the right trailer to fit your hauling needs.
